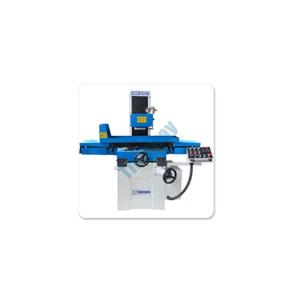

Universal Surface Grinder Machine HSG 1022

SKU : CPI-TMWY-HSG1022

Harga : Call

Pesan di

Dapatkan harga terbaik Kami

Mesin Penggiling
Technical Parameter Max. workpiece to be ground(L*W):540 x 250mm Max.travel of table(L*W):560 x 260mm Table Max. cutting area(L*W):540 x 250mm Number/Wide of T-slot:1 x 14mm Distance from table surface to spindle center:450mm Wheel size(Dia.*Width*Bore):Φ200x20xΦ31.75mm Spindle speed:2850rpm Table longitudinal(left and right)speed(stepless):3 - 20m/min Table horizontal(before and after)the amount of feed: Continuous(variable speed):150mm/min Intermittent(stepless):0-5mm/time The handwheel rotates:4mm Hand wheel each grid:0.02mm Vertical(up and down)feed wheel feed: The handwheel rotates:2mm Hand wheel each grid:0.01mm Spindle motor:1.5kw Cooling motor:40w Hydraulic motor:1.5kw Working pressure:3Mpa Oil tank capacity:80L Max. capacity:18L/min The machined surface of the base of parallelism:0.004/300mm Surface roughness:Ra0.32um Net:1.25T Gross:1.35T Packing size (L*W*H):1780x1220x1780mm
