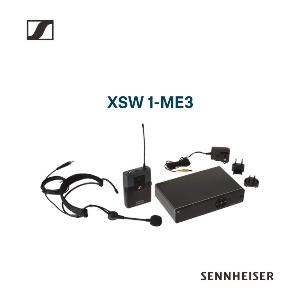

Sennheiser Mic Wireless Type XSW 1 ME 3

SKU : -

Harga : Call

Dapatkan harga terbaik Kami

Specifications Receivers Dimensions approx. 200 x 42 x 127 mm Weight approx. 340g Power supply 12 V DC nom. / 300 mA AF frequency response 50 to 16,000 Hz (–3 dB) Transmitter Dimensions approx. 71 x 96 x 28 mm Weight approx. 95g Operating time Approx. 10 hrs Power supply 2 AA size batteries, 1.5 V Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps Microphone Condenser THD, total harmonic distortion ? 0.9% Pick-up pattern Cardioid Signal-to-noise ratio ? 103 dBA RF output power 10 mW Switching bandwidth up to 24 MHz Modulation Wideband FM Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu Housing Rugged ABS housing Frequency 8 frequency banks, each with up to 10 factory-preset channels Frequency range A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz Sensitivity < 3 ?V at 52 dB(A)rms S/N SPL for peak deviation 150 dB Squelch adjustable from 3 dB?V to 28 dB?V (combined with pilot tone) Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization) Input sensitivity 1.5 mV / Pa Audio adjustment range 45 dB, adjustable in 5-dB steps Line / Mic level 20 dB, switchable Temperature Range Operation: 0°C to +40°C, storage: –20°C to +70°C Receiver Principle Double superheterodyne Diversity principle Antenna switching diversity via internal antennas What's in the Box 1 receiver EM-XSW 1 1 headset microphone ME 3-II 1 bodypack transmitter SK-XSW 1 power supply NT 12-5 CW 2 AA batteries

Brand :

sennheiser
