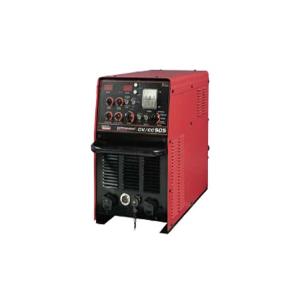

Multi-Process Welding Machine Optimarc CV/CC 505

Untuk Mengelas Logam
Multi-Process-Reliability-Portability The digitally controlled this machine provides constant voltage (CV) / constant current (CC) output for heavy duty welding applications delivering superior welding performance and faster response to changes at the arc. It is an ideally suited for fabricating with MIG and Flux Cored arc welding processes with 1.0mm to 1.6 mm diameter solid and flux core welding wire. It is also ideal for use on SMAW with up to 6 mm electrodes. Take advantage of this inverter-based power source to achieve high input power factor ratings for real savings on your electric bills and decrease your welding costs. Heavy fabrication welding operations will appreciate the broad multi-process performance of the CV/CC this machine featuring robust stick, MIG and flux-core wire welding as well as precision Touch-start TIG performance. The machine can be operated on generator power which makes it a perfect welder for the field welding jobs using stick and self-shield wires. Processes GMAW, FCAW, GTAW (TIG), SMAW (STICK) Description Output: CV/CC | DC Input: 3 Phase 50/60 Hz Available Accessories ● Interconnection Cable Assembly (Includes control cable, welding cable and gas hose) [K60010-50-10M] ● Work Cable Assembly (with earth clamp) [K60027-50-4M] ● MIG Welding Torch [K60111-4E] ● Gas regulator/flow meter [K60012-4-220] ● TIG Welding Torch [K60100-4] ● Welding Cable [K60057-70-3M] ● [K60137-1] LWF®-32GS Two rollers drive, drive structure and wire reel protected, Euro style connection Advantage ● Synergic function, preset voltage is matched with current automatically. Both current and voltage are pre-settable ● Light weight and Portable - easy to move ● Toughness. Test to strict IP23 Classsifications-designed for "Real" industrial conditions ● “Made To Last” PC Boards ▲ "Trayed & Potted" PCB's filled with epoxy double locked and environmentally protected wiring harness connectors ▲ Boards are carefully located to provide maximum protection from the environment ● A five position switch for welding process mode selection enabling the operatorto easily select his chosen welding output for he specific welding application ● Full remote and multi-process capability-Stick, Touch-Start TIG, MIG & Flux-cored ● The latest generation of worldwide inverter technology for maximum reliability ● Unique low power consumption design with 85% efficiency with a high 0.94 power factor ● Touch-Start TIG for easy to achieve great arc starts minimizing tungsten contamination ● Digital Meters ▲ Provide accurate weld parameter readings which are retained after welding ▲ Allow auto fault diagnostic display ● 5~500 Amp output range for all recommended processes which is low enough for TIG welding on thin sheet metal and robust enough for stick welding with 6 mm electrode ● Sturdy Easy Access Front Panel door protects multi-pin control socket and weld terminals Technical Specifications Input power: 380V~415V(±10%) / 3 / 50 or 60 Hz Rated output Current/Voltage/Duty cycle [SMAW]: 500A/40V/60% | 390A/35.6V/100% Rated output Current/Voltage/Duty cycle [GMAW]: 500A/39V/60% | 390A/33.5V/100% Rated output Current/Voltage/Duty cycle [GTAW]: 500A/30V/60% | 390A/25.6V/100% Power input at rated output (KVA): 23 @ 60% Output Range [SMAW]: 20.6~40V | 15~500A Output Range [GMAW]: 16~39V | 50~500A Output Range [GTAW]: 10.2~30V | 5~500A Dimensions H × W × D (mm): 540 x 340 x 800 Net Weight (kg): 47
