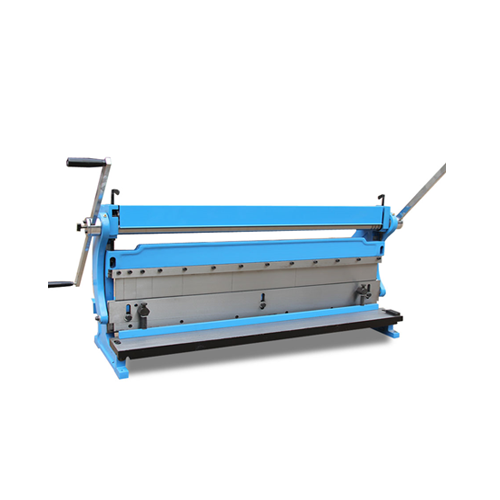

Combination Of Shear, Press Brake & Slip Roll Machine WT-1320SPR
SKU : CPI-WT-1320SPR
Harga : Call
Pesan di
Features : 1. Press brake has hardened adjustable dies that allows the fabricator to make certain boxes and pans. 2. Slip rolls has hardened rolls with three wire grooves for small round rod. 3. The metal shear can cut at full capacity across the entire width of the machine. 4. Folding with max. angle of 90 degree. 5. Ideal combination machine for sheet metal machining to al lenght of approx. 305 mm and thickness up 1.0 mm. 6. Cutting stop. 7. Roll bending starting with diameter of approx. 39 mm. Technical parameter : 1. Bed width : 1320 mm. 2. Max. shearing thickness : 1.0 mm. 3. Max. bending thickness : 1.0 mm. 4. Max. bending angle : 90 degree. 5. Max. rolling thickness : 1.0 mm. 6. Min. rolling diameter : 43 mm
