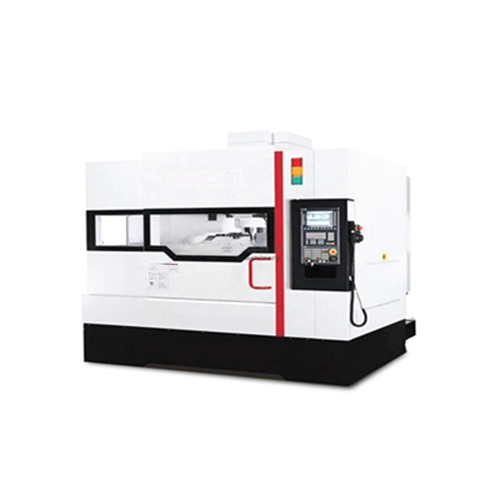

CNC Vertical Milling (Machining Center) WT-1200VMC
SKU : CPI-WT-1200VMC
Harga : Call
Pesan di
features : 1. Monitoring maintenance schedule 2. Real time 3D cuttting simulation 3. Machining parameter calculator 4. Handwriting screen memo 5. Full cover protection 6. Additional spare M code 4 set (anti fire system, measuring holding time, etc) 7. Power failure auto retract Z axis spindle 8. Body and spindle over heat protection 9. Additional workpiece coordinate system : min 100 points 10. Standard accesories : 3 jaws chuck, coolant system, auto lubrication system, tools and toolbox Technical parameter : 1. Table size 1200 x 600 mm 2. Longitudinal travel X 1100 mm 3. Cross travel 600 mm 4. Vertical travel 600 mm 5. Spindle taper BT40 6. Spindle speed 8000 rpm 7. Spindle motor power 15 KW 8. Tool number capacity 24 tools 9. Rapid tranverse X/Y 36 m/min 10.Rapid tranverse Z 24 m/min
