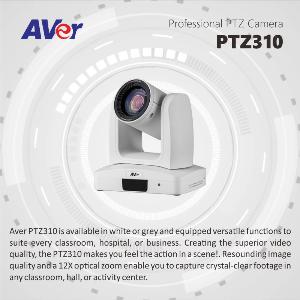

Aver PTZ Camera Aver Type PTZ 310

Camera Image sensor 1/2.8" 1080p 60fps Exmor CMOS Effective Picture Elements Approx. 2.1 megapixels Output Resolution Auto 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50 Minimum Illumination 0.4 lux (IRE50, F1.6, 30fps) S/N Ratio > 50dB Gain Auto / Manual TV Line 800 (Center/Wide), 700 (Corner/Wide) Shutter Speed 1/1s – 1/32,000s Exposure Control Auto, Manual, Priority AE (Shutter, IRIS), BLC White Balance Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000) Optical Zoom 12X Digital Zoom 12X Horizontal Viewing Angle 72.5° (Wide) – 6.3° (Tele) Focal length f = 3.9 mm (Wide) – 46.8 mm (Tele) Aperture (Iris) F = 1.6 (Wide) – 2.8 (Tele) Minimum Working Distance 0.3 m (Wide), 1.5m (Tele) Pan/Tilt Angle Pan: +- 170° ; Tilt: +90° / -30° Pan/Tilt Speed (Manual) Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec Preset Speed Pan: 200° /sec, Tilt: 200° /sec Preset Position 10 (IR), 255 (RS-232) Camera Control - Interface RS-232 (DIN9) / RS-422 (RJ45) Camera Control - Protocol VISCA (RS-232/RS422/IP), CGI (IP) Image Processing Noise Reduction (2/3D), Flip, Mirror Power Frequency Auto / 50Hz / 60Hz Audio Channel 2ch (Stereo) Codec AAC-LC (48/44.1/32/24K), G.711/PCM Sample Rate 48/44.1/32/24/16/8Khz Interface Video Output 3G-SDI, HDMI, IP, USB Audio Output 3G-SDI, HDMI, IP, USB Audio Input MIC / Line in General Power Requirement AC100V-AC240V to DC12V/5A PoE POE+ (IEEE 802.3at), Class 4 Operating Condition Temperature: 0°C – +40°C ; Humidity: 20% – 80% Storage Condition Temperature: -20°C – +60°C ; Humidity: 20% – 95% Dimensions L=180 mm, W= 145 mm, H= 183.5 mm Weight 1.74 kg Application Indoor Security Kensington slot Remote Control Infrared Accessories Remote control, 12V/5A power adapter IP Streaming Resolution 1920x1080, 1280x720, 960x540, 640x480 Network Video Compress Format H.264 (High Profile), MJPEG Maximum Frame Rate H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080) Bit-rate Control Mode VBR/CBR (selectable) Range of Bit-rate setting 512Kbps – 32Mbps Network Interface 10/100/1000Base-T Multi-stream Capability 2 Network Protocol IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP USB Connector Micro-USB 2.0 Video Format YUV, MJPEG, H.264 Maximum Video Resolution Up to 1080p USB Video Class UVC1.1 USB Audio Class UAC1.0 Web UI Live Video Preview Yes Camera PTZ Control Pan / Tilt / Zoom / Focus / Preset Control Camera / Image Adjustment Exposure / White Balance / Picture Network Configuration DHCP, IP Address, Gateway, Subnet Mask, DNS Software Tools Device IP Searching, Configuration Tool Windows Application
