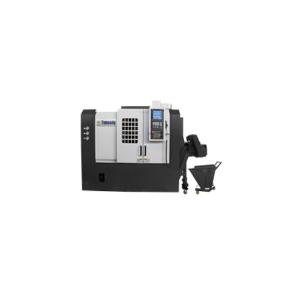

Mesin Bubut CNC Slant Bed CK-32

SKU : CPI-TMWY-CK32

Harga : Call

Pesan di

Dapatkan harga terbaik Kami

Mesin Bubut

Technical parameter : Max. swing over bed : 420 mm Max. swing over cross slide : 220 mm Standard turning diameter : 210 mm Max. turning diameter : 320 mm Max. turning length : 350 mm Spindle speed : 3,500 rpm Spindle nose : A2-5 Spindle bore : 56 mm Hydraulic chuck size : 160 mm Cross travel (X) : 210 mm Longitudinal travel (Z) : 450 mm X/Z-axis rapid feed speed : 20/12 m/min Hydraulic cool post type : 80-8T Tool section size : 25 x 25 mm /Φ32 mm Tailstock quill diameter : 52 mm Tailstock quill travel : 60 mm Tailstock quill taper : MT4 Bed structure : 45° Integral bed Guideway type : Linear/Sliding Main motor power : 7.5 kW Power supply : 30 KVA

Video Review & Installation
