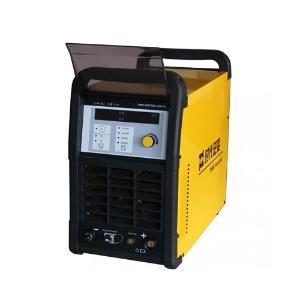

Inverter Air Plasma Cutting TDL 800
SKU : CPI-TIME-TDL800
Harga : Call
Pesan di
Technical Specifications: Rated input voltage: Three-phase AC 380V±15% 50/60Hz Rated input current (A): 13.4A Rated input power (kw): 9 Rated output capacity (X=60%): 80A/112V Rated no-load voltage (V): 307±5% Rated no-load current (A): ＜1 Energy efficiency grade: Grade 2 Power factor (COSφ): 0.89 Efficiency (η): 90% Rated duty cycle(40°C): 60% insulation grade: F Case Protection Class: IP23S Output current (A): 25 ～ 80 Arc striking current (A): Non high frequency Maximum cutting through thickness (mm): 40 Quality cutting (mm) (Carbon steel): 25 Quality cutting (mm) (Stainless steel): 20 Piercing cutting thickness (mm): 12 Dimension (L×W×H) (mm): 592×290×503 Net weight (kg): 33 Included: • Cutting torch • Gas hose • Earth lead package • With wheels
