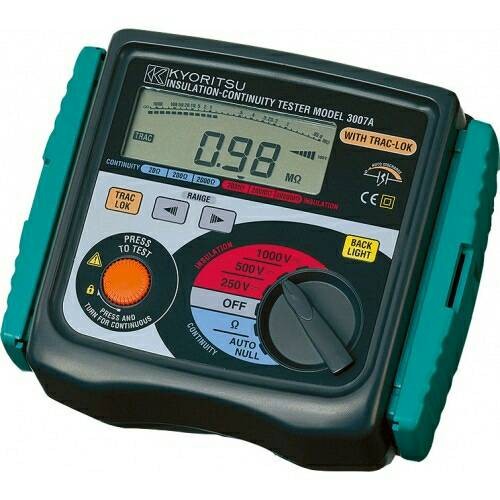

Insulation Tester 3007A
SKU : CPI-KYORITSU-3007A
Harga : Call
Pesan di
Specification: Power Source: R6 (AA) (1.5V) x8 Contents Included: 7122B (Test leads) Pouch for test leads; 8923 (F500mA/600V fuse) x2; R6 (AA) x8; Shoulder Strap; Instruction Manual Continuity Test Measurement Current (mA): min. DC 200 Insulation Resistance Measuring Ranges (MΩ): 20/200/2000 Insulation Resistance Test Voltage (V): 250/500/1000 AC Voltage Range (V): 0-600 Continuity Test Output Voltage on Open Circuit (V): DC 7-12 Insulation Resistance Outpur Short Circuit Current (mA): Approx. DC 1.5 Continuity Test Accuracy: ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200Ω/2000Ω) Insulation Resistance Output Voltage on Open Circuit: Rated test Voltage +20%, 0% Insulation Resistance Nominal Current (mA): min. DC 1 Insulation Resistance Accuracy: ±1.5%rdg±5dgt (20MΩ/200MΩ). ±10%rdg±3dgt (2000MΩ) Continuity Test Measuring Range (Ω): 20/200/2000 AC Voltage Accuracy: ±5%rdg±3dgt Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2. IEC 61010-2-031 IEC 61557-1/2/4 IP Rating: IEC 60529-IP54 EMC standard: IEC 61326-1 Berat (Kg): 1.3
