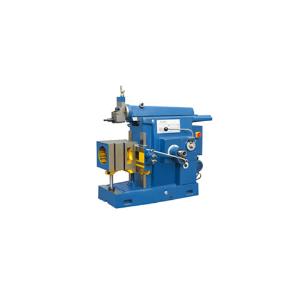

Hydraulic Shaping Machine SM-350
SKU : CPI-TMWY-SM350
Harga : Call
Pesan di
Mesin Hidrolik
Specifications: Max. cutting length:350 mm Max. distance from ram bottom to table surface:330 mm Max. table horizontal travel:400 mm Max. table vertical travel:270 mm Max. displacement of the ram:170 mm Max. turning angle of the worktable:+90⁰ no vice ; +55⁰ vice Max. vertical travel:110 mm Number of ram strokes per minute:32, 50, 80, 125 times/min Wheeled round a tooth :0.18 mm vertical ; 0.21 mm horizontal Wheeled round 4 tooth :0.73 mm vertical ; 0.84 mm horizontal Electric :1.5 kW
