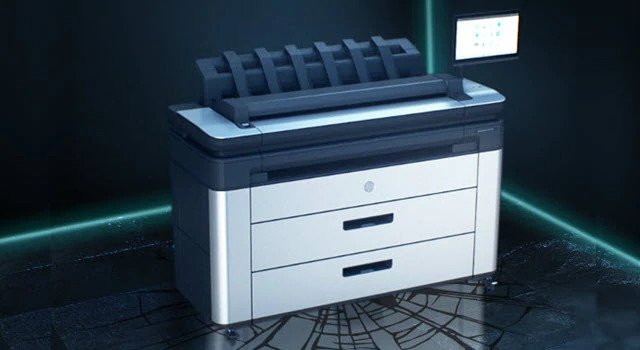

HP Designjet XL3600 MFP 36-in

First page out 29 sec1; Wake-up time less than 10 sec (no warm-up time)
Print speed 180 A1/hr
19.3 sec/A1
3 A1/min
Print resolution Up to 2400 x 1200 optimised dpi
Technology HP Thermal Inkjet
Ink types Dye-based (C, G, M, pK, Y); pigment-based (mK)
Ink drop 6 pl (C, M, Y, G, pK); 9 pl (mK)
Printheads 1 (C, M, Y, G, mK, pK)
Line accuracy ±0.1%

Scan speed Scan: Up to 7.62 cm/sec (colour, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Copy: Up to 15.24 cm/sec (colour, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Scan resolution Up to 600 dpi
Scan format JPEG, TIFF and multipage TIFF, PDF and multipage PDF
Scan destinations USB, shared network folder, printer HDD, email
Maximum scan length 50 m (PDF), 12 m (TIFF), 8 m (JPEG)
Thickness 0.8 mm

Handling Sheet feed, spindle-less drawers, automatic front-loading roll feed, smart roll switching6
, integrated output stacker, media
bin, automatic horizontal cutter
Scanner: straight-through scan paper path for sheet and cardboard originals
Roll size 279 to 914-mm width, up to 200-m length, 3-in core (default) or 2-in core (optional)
Sheet size 210 x 279 to 914 x 1219 mm
Standard sheets A4, A3, A2, A1, A0
Grammage 60 to 328 g/m²
Thickness Up to 0.5 mm

Line drawings; Maps; Orthophotos; Presentations; Renderings
Memory 128 GB (file processing)
Hard disk Standard, 500 GB (AES-256 encrypted)

Interfaces Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP,
BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery,
Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3,
SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages (standard) PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Print languages (optional) Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7
Printing paths Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print
Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and
Android, HP SmartStream (optional)
Drivers PostScript Printer: PostScript and PDF Windows drivers, raster drivers for Windows, AirPrint for macOS
Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS

HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS,
Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP
JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD,
encrypted PIN printing, Syslog security logging

Printer 1500 x 660 x 1310 mm
Shipping 1625 x 770 x 1260 mm

Printer Single-roll: 154 kg, dual-roll: 170 kg
Shipping Single-roll: 203 kg, dual-roll: 220 kg

HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub
right adapter kit, quick reference guide, setup poster, power cord

HP Click4
, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP
JetAdvantage Security Manager, HP SmartStream4
 (optional), HP SmartTracker (optional)

Operating temperature 5 to 35ºC
Operating humidity 20 to 80% RH
Storage temperature -25 to 55ºC

Sound pressure 42 dB(A) (operating), 32 dB(A) (idle), <19 dB(A) (sleep)
Sound power 5.9 B(A) (operating), 4.9 B(A) (idle), <3.7 B(A) (sleep)

Consumption <120 W (printing + scanning); 40 W (ready); <1.0 W (<14 W with embedded Digital Front End) (sleep); 0.3 W (off)
Requirements Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A

Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA);
Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS)
Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New
Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Environmental ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT

90-day limited hardware warranty
