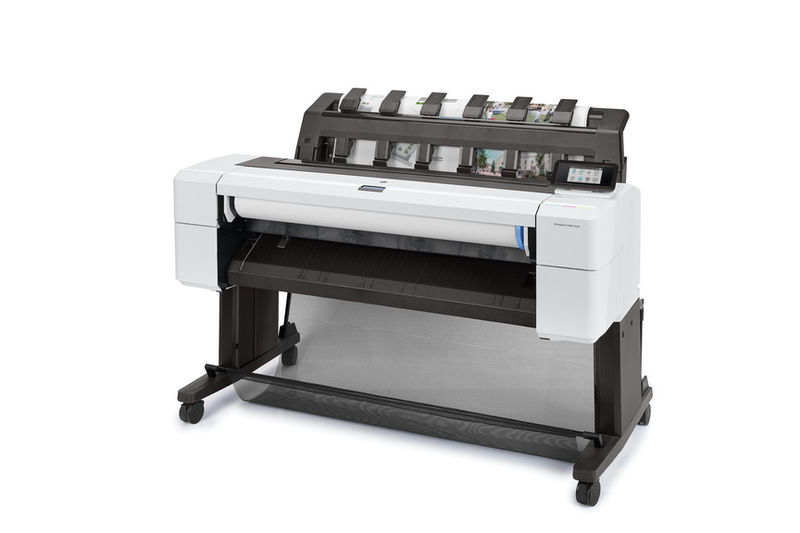

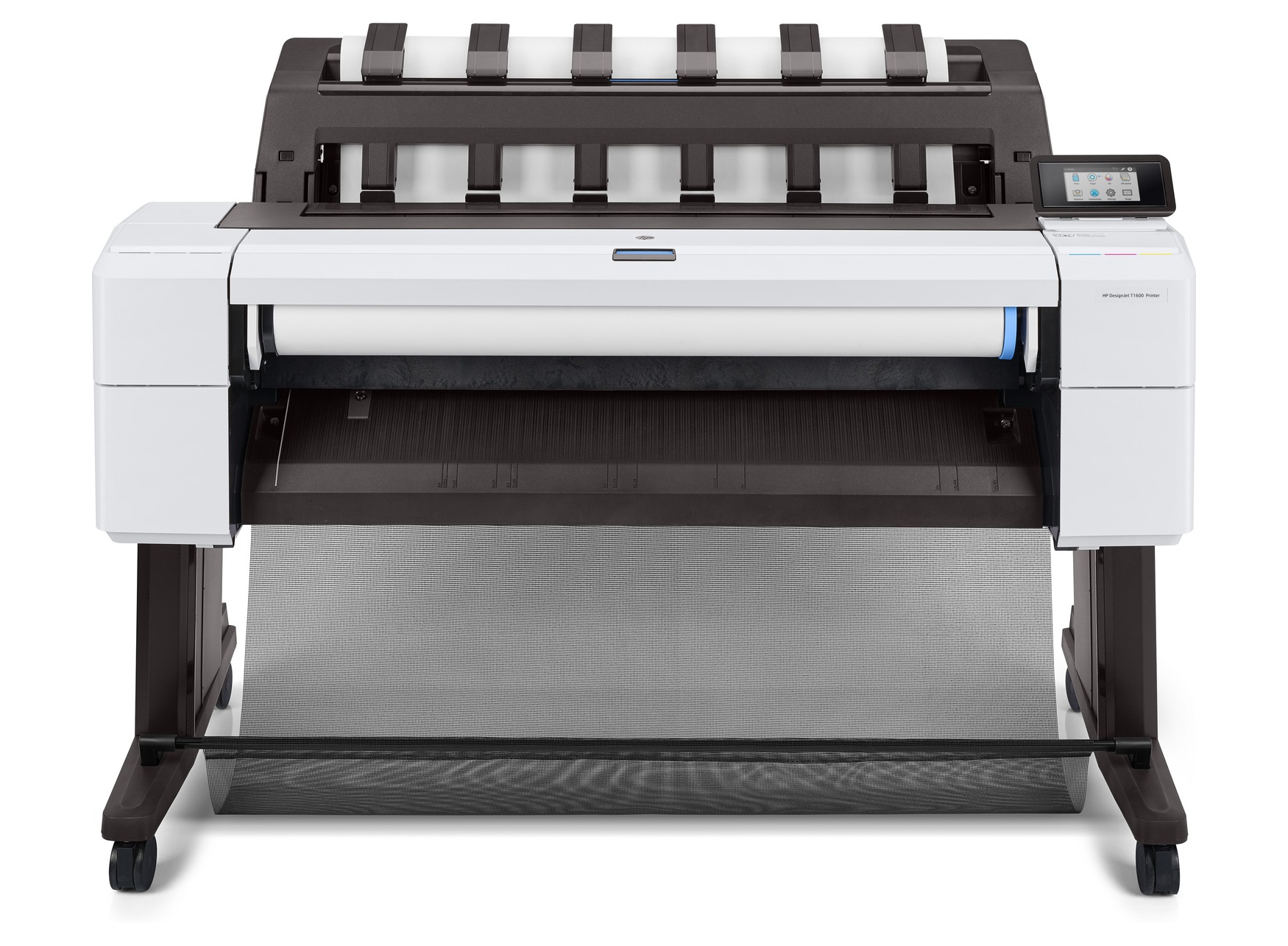

HP Designjet T1600 36-in Printer

Print technology    HP Thermal Inkjet
Print languages    HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Optional print languages    Adobe PostScript 3; Adobe PDF 1.7
Model size    914 mm
Theoretical minimum line width    0.02 mm (PDF addressable @ 1200 dpi)
Line accuracy    ±0.1%[2]
Print speed    180 A1/hr, 19.3 sec/A1[1]
Print quality color (best)    Up to 2400 x 1200 optimised dpi
Non-printable area (cut-sheet)    3 x 22 x 3 x 3 mm
Non-printable area (roll media)    3 x 3 x 3 x 3 mm
Printing path    Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android
Printer drivers included    Raster driver for Windows, AirPrint for macOS
Internal Storage    500 GB self-encrypting
Ingatan    128 GB (file processing)[3]

Connectivity, standard    Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Network ready    Standard
HP ePrint capability    Yes
Mobile printing capability    Direct print from mobile apps on iOS, Android, and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Power Consumption Description    100 W (printing); < 36 W (ready); < 1 W (< 10 W with embedded Digital Front End) (sleep); 0.3 W (off)
Catu daya    Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Number of print cartridges6 (C, M, Y, G, pK, mK)Print cartridge volume delivered300 ml (C, M, Y, G, pK, mK); 130 ml (C, M, Y, G, pK, mK)Print heads1 universal printheadInk typesDye-based (C, M, Y, pK, G); pigment-based (mK)

Finished output handling    Sheet feed, automatic front-loading roll feed, integrated output stacker, media bin, automatic horizontal cutter
Media types    Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media sizes supported    A4, A3, A2, A1, A0
Media sizes, custom    210 x 279 to 914 x 1219 mm
Media sizes standard (metric rolls)    279 to 914 mm
Media width, maximum    914 mm
Media weight, recommended    60 to 328 g/m²
Media thickness    Up to 19.7 mil
Roll external diameter    140 mm
Roll maximum input    1
Roll maximum weight    11.9 kg
Recommended media    [4] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. BMG trademark license code PEFC™/29-31-261, see http://www.pefc.org. HP trademark license code PEFC™/29-31-198, see http://www.pefc.org. Not all FSC®- or PEFC™-certified products are available in all regions.
Supported Primary Applications    Line drawings; Maps; Orthophotos; Presentations; Renderings

Operating temperature range    5 to 35ºC
Storage temperature range    -25 to 55ºC
Operating humidity range    20 to 80% RH
Non-Operating Humidity Range    0 to 90% RH
Acoustic power emissions    ≤ 5.9 B(A)
Acoustic power emissions (standby)    ≤ 4.9 B(A)
Acoustic power emissions (sleep)    ≤ 3.5 B(A)
Acoustic pressure emissions    42 dB(A)
Acoustic pressure emissions (standby)    32 dB(A)
Acoustic pressure emissions (sleep)    < 17 dB(A)

Dimensions without stand (W x D x H)    1390 x 760 x 1080 mm
Package dimensions (W x D x H)    1477 x 767 x 800 mm
Berat    82 kg
Package weight    113 kg

Apa yang ada di dalam kotak    HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
Software included    HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional)

JaminanOne-year limited hardware warranty

ENERGY STAR® certified    Yes
Electromagnetic Emission Standard    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Environmental Certifications    ENERGY STAR, ErP, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT
Safety Approvals and Requirements    USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS)

Web address for additional information    http://www.hp.com/go/designjett1600
Aksesoris    5NB95A HP SmartTracker USB for DesignJet, 5NB95AAE HP SmartTracker for DesignJet, C0C66C HP DesignJet PostScript/PDF Upgrade Kit, CN538A HP DesignJet 3-in Core Adapter, G6H50B HP SD Pro 44-in Scanner, G6H51B HP HD Pro 42-in Scanner, L4R66A HP DesignJet 36-in Spindle, N7P47AA HP USB 3.0 to Gigabit LAN Adapter
Services (Care Pack)    UB8P0E HP 3 year NBD Onsite HW Support with DMR; UB8P1E HP 4 year NBD Onsite HW Support with DMR; UB8P2E HP 5 year NBD Onsite HW Support with DMR; UB8P3PE HP 1 year Post Warranty NBD Onsite HW Support with DMR; U1XV4EHP Preventive Maintenance Service; H4518E HP Installation Service with Network Setup
