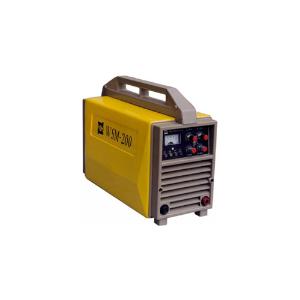

GTAW Welding Machine WSM-200
SKU : CPI-TIME-WSM200
Harga : Call
Pesan di
Untuk Mengelas Logam
Rated Input Voltage (V): Single phase 220V 50~60Hz Rated Input capacity (KW): 6.6 No-load voltage (V): 62±5% Output current adjusting range (A): 5~200 (TIG) Pulse frequency (Hz): 0.5~15 Thrust current range(A): 0~100A/ms Slope up time (s): 0.1~99.9 Slope down time (s): 0.1~99.9 Spot time (s): 0.01~9.99 Pro-flow time (s): 0~13 Post-flow time (s): 0.1~50 Pulse ratio range: 0.1%~99.9% Duty cycle (40℃): 35% Power factor: 0.93 Efficiency: 85% Insulation grade: F Case protection grade: IP21S Cooling: Wind Dimensions (mm): 455×214×340 Net weight (kg): 11 Description: Widely used in the field of maintenance; Pointer type current meter; Power input: 3 phase 380V is optional. Accessories: TIG Torch Ground Cable Ground Clamp Gas Regulator Tabung Gas
