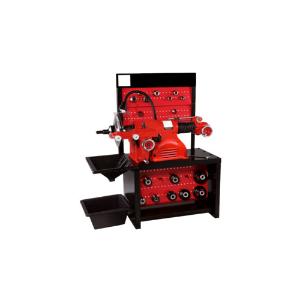

Bubut Rem Drum Dan Disk (Brake Drum And Disk Lathe)
SKU : CPI-UFOX-22115
Harga : Call
Pesan di
Technical Parameter: 1) Spindle Travel : 6.875” (175mm) 2) Spindle Feed Speed : 0. 002” ( 0. 05mm) - 0. 02” (0. 5mm) Rev 3) Handwheel Graduations : 0. 002” (0. 05mm) 4) Rotor Thickness : 1.875” (48mm) 5) Drum Depth : 6.875” (175mm) 6) ross Weight : 290KG 7) Spindle Speed : 70,88,118 RPM 8) Cross Feed Speed : 0. 002” ( 0.05mm) 0.02” (0.5mm) Rev 9) Rotor Diameter : 7” - 15” (180-381mm) 10) Drum Diameter : 6”- 17.7” (152-450mm) 11) Motor : 110V/220V/380V 50/60Hz 12) Dimension : 1010×950×1150 mm
