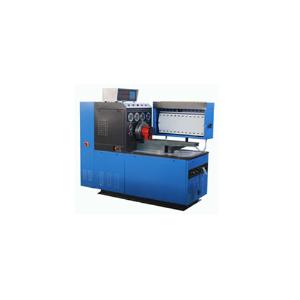

Bangku Uji Diesel Konvensional (Conventional Diesel Test Bench)
SKU : CPI-UFOX-22119
Harga : Call
Pesan di
Bangku uji diesel konvensional, Technical Parameters: - Adjustable rotation speed range: approx. 0~4000 RPM - Test cylinders: min. 12. - Rotation speed presetting: min. 10 kinds. - DC. Supply: 12/24V - Feeding pump motor: approx. 1.1kw - Series of graduate glass: 45cc, 150cc. - Volume of oil tank: approx. 60L - Main shafts Center height: approx. 125 mm - Flywheel inertia's moment: approx. 0.8kg.M2, - Stoke counting: 50-9999 - Control temperature of fuel oil (℃): 40+2 - Feed oil pressure: low pressure approx. 0-0.4MPa, high-pressure approx. 0-4Mpa. - Internal pressure: 0-0.16MPa, 0-1.6MPa. - Rotation direction of Main shafts: Clockwise or Anticlockwise - Output power: approx. 7.5kw - 3 phase power supply: 380V/50Hz or on request.
